Base Unit Line Drawings

Notes.
Our range of industrial steel kitchen units includes:

  • Floor units available with or without drawers and with or without post formed tops.
  • All our cabinets are standard with grab handles for ease of use and fitted with strong and sturdy hinges.
  • These are illustrations only.
  • 535mm dimensions represents width of unit including post formed tops.
  • In addition the above, we manufacture custom made units to clients specifications.
  • CAD drawings available on request.
  • Line drawings for plan and elevation views available on request.

FC 300

FC 300

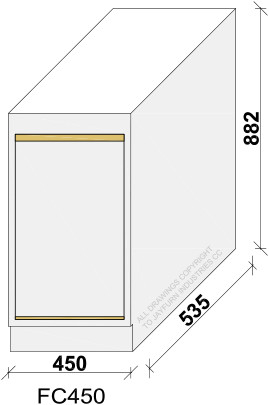

FC 450

FC 450

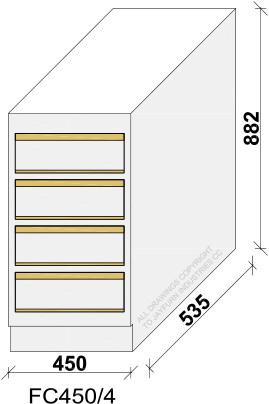

FC 450/4

FC 450/4

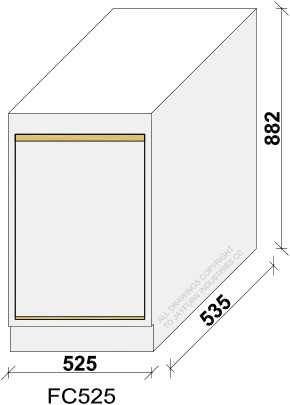

FC 525

FC 525

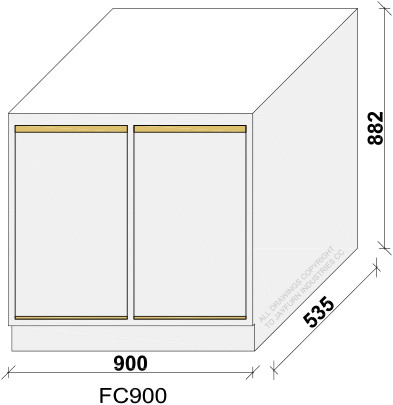

FC 900

FC 900

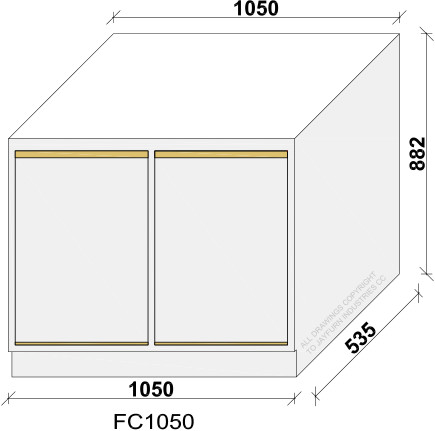

FC 1050

FC 1050

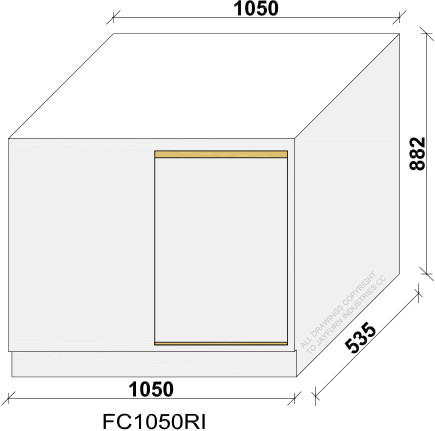

FC 1050RI

FC 1050RI Reach In

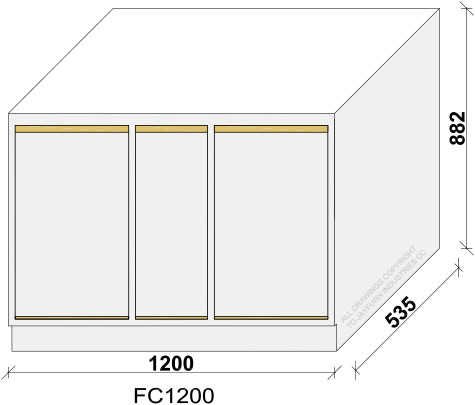

FC 1200

FC 1200

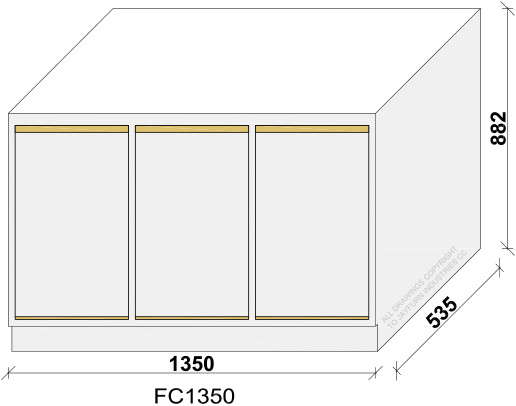

FC 1350

FC 1350

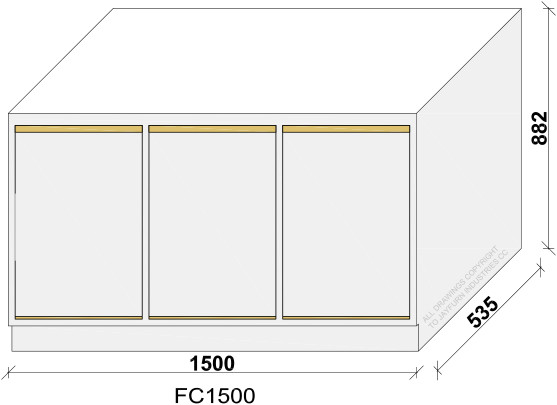

FC 1500

FC 1500

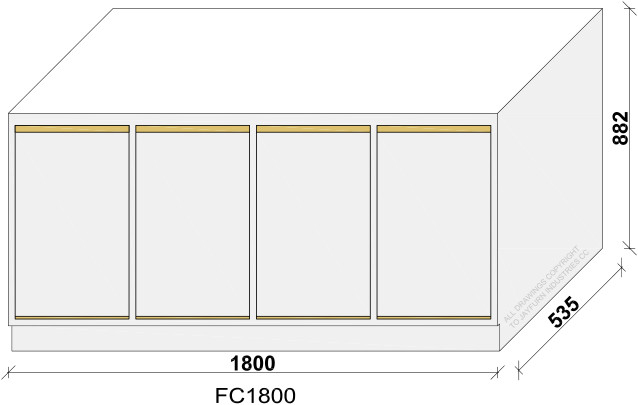

FC 1800

FC 1800

Broom and Grocery Unit

Broom and Grocery Unit
